Essential Tool for Controlled Environments: The Role of the Clean Room Pass Box
In high-precision industries where contamination must be minimized, a clean room pass box is an indispensable part of facility design. Also known as a transfer hatch or transfer window, it serves as a controlled intermediary space for transferring materials into or out of a clean room without direct human entry, thereby preserving environmental integrity. Clean room pass boxes contribute significantly to contamination control by minimizing particulate transfer during the material movement process.
Understanding the Clean Room Pass Box

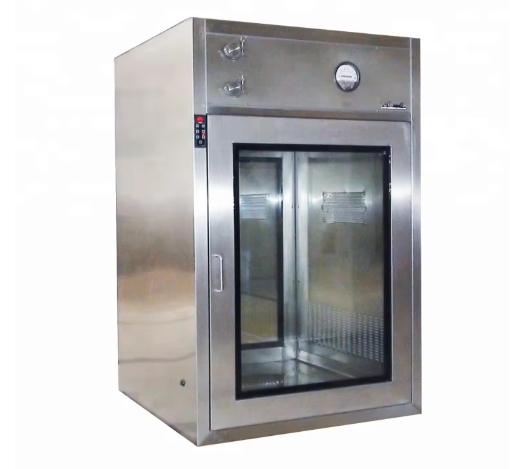

A clean room pass box is a sealed chamber installed within a wall that separates a clean room from an adjoining area. It is designed with two doors—one on each side of the wall—that are electronically interlocked to prevent simultaneous opening. This ensures that the clean room remains isolated from external air while objects are passed between spaces.
These boxes come in two primary types: static and dynamic. Static pass boxes are used between two areas of the same clean classification and rely on minimal air exchange. Dynamic pass boxes, on the other hand, are equipped with built-in HEPA or ULPA filters and fans to actively purge and filter the air during the transfer, making them suitable for transitions between clean and less-clean environments.
In both cases, the objective is the same—to ensure material movement occurs without compromising the clean room’s strict contamination standards.
Key Features and Construction
Clean room pass boxes are typically constructed from stainless steel or powder-coated metal to ensure durability, corrosion resistance, and ease of cleaning. The interior is designed with smooth corners and seamless joints to reduce particle accumulation and simplify sanitation.
The door interlock system, either mechanical or electronic, prevents cross-contamination by ensuring that only one side of the pass box can be opened at any time. This locking mechanism is often reinforced with visual indicators such as LED lights or status alarms to guide users.
Dynamic pass boxes also include air nozzles, blowers, and filtration units that create a pressurized environment inside the box. This positive pressure helps prevent ingress of contaminated air, especially in clean room setups that require ISO Class 5 or better air quality.
Additional features may include UV sterilization lamps, differential pressure gauges, and timers, which further enhance the contamination control performance.
Applications Across Critical Industries
Pharmaceutical and Biotechnology Manufacturing
In pharmaceutical production, where even trace contaminants can compromise product efficacy or safety, clean room pass boxes are essential for maintaining sterile conditions. They allow the safe and efficient transfer of ingredients, samples, and packaging materials between production zones without breaking containment.
Biotech labs use pass boxes to move sensitive biological samples while maintaining rigorous cleanliness requirements. The use of dynamic pass boxes is especially prevalent in biohazard containment areas, where strict separation of clean and unclean areas is mandated.
Semiconductor and Electronics Industries
The semiconductor sector relies heavily on particle-free environments. Clean room pass boxes facilitate the transfer of wafers, microchips, and tools between clean zones and less critical areas, eliminating the need for personnel to re-gown or re-enter clean spaces. This reduces human error, limits particulate influx, and boosts operational efficiency.
Electronics manufacturers use static or dynamic pass boxes depending on the ISO classifications of the connected rooms. In both cases, the goal is to reduce contamination from external environments.
Hospitals and Medical Device Manufacturing
In medical environments, especially in surgical suites and sterilized equipment zones, pass boxes allow for safe movement of instruments and medications. Medical device manufacturers use them to transfer components into clean assembly rooms while avoiding microbial and particulate contamination.
Hospitals with on-site compounding pharmacies or clean room pharmacies use pass boxes to move medications while maintaining sterile conditions.
Food and Beverage Production
Some food production facilities that require high hygiene standards, particularly those involved in dairy, pharmaceuticals-grade nutraceuticals, or infant formula, utilize clean room pass boxes to move ingredients and tools between clean and unclean areas, ensuring product safety.
Operational Guidelines for Effective Use
Standard Operating Procedures
Proper use of a clean room pass box is essential to maintain its effectiveness. Personnel should be trained on opening procedures, how to wait for indicator signals before accessing the opposite door, and how to avoid resting materials directly on pass box surfaces without sterilization.
Standard operating procedures should include cleaning and disinfection protocols, frequency of filter replacement (for dynamic models), and emergency access rules in case of power failure.
Cleaning and Maintenance
Because the pass box is in constant contact with materials from different cleanliness zones, regular cleaning is mandatory. Surfaces should be wiped with clean room-grade disinfectants, and all internal corners checked for particulate build-up.
For dynamic pass boxes, HEPA or ULPA filters should be replaced per manufacturer guidelines, and blower units inspected periodically to ensure consistent airflow.
Electronic systems, such as door interlocks and indicator lights, should be tested regularly to avoid operational failure.
Integration with Clean Room Workflow
To optimize efficiency, pass boxes should be placed at logical points along the workflow—between gowning areas and clean rooms, or between raw material storage and production zones. Their placement should reduce foot traffic through clean rooms while still enabling smooth material movement.
Facilities should also consider material size and volume when selecting pass box dimensions. Overloading a pass box or using it for oversized items can compromise air sealing and filtration performance.
Advantages of Clean Room Pass Boxes
Enhanced Contamination Control
The dual-door, interlocked design creates a physical barrier that limits airborne particles from entering clean spaces. Dynamic pass boxes enhance this function by introducing filtered airflow that purges contaminants from both transferred materials and the chamber itself.
This greatly reduces the need for frequent full-room cleaning and maintains ISO cleanliness standards.
Improved Workflow Efficiency
Pass boxes reduce the need for personnel to enter clean rooms to transfer items, minimizing gowning time, potential human error, and contamination risks. This also contributes to better resource allocation and faster process cycles.
Cost-Effective Clean Room Expansion
Rather than expanding clean rooms to accommodate material transfer, installing pass boxes provides a scalable and cost-effective solution. They add functionality without increasing the size or complexity of the clean room.
Conclusion
A clean room pass box is a vital tool for maintaining strict contamination control while optimizing material handling processes in controlled environments. Whether static or dynamic, it ensures that materials can move between different zones without exposing the clean room to potential risks.
Proper selection, placement, and maintenance of pass boxes are essential for their effectiveness. For industries that depend on precision and sterility—from pharmaceutical manufacturing to electronics—these simple yet powerful tools form an integral part of a robust contamination control strategy.
FAQ
What is the difference between a static and dynamic pass box?
A static pass box does not have airflow or filtration and is used between areas of similar cleanliness. A dynamic pass box has a built-in air filtration system that actively purges contaminants and is used between areas with different cleanliness levels.
Can a pass box be used for both equipment and raw materials?
Yes, pass boxes are designed to handle a range of items, including tools, components, and raw materials, as long as the dimensions and weight limits are observed.
Are pass boxes required for ISO Class 7 clean rooms?
While not mandatory, pass boxes are highly recommended for ISO Class 7 or higher to minimize particulate transfer and preserve air quality.
How often should the HEPA filter in a dynamic pass box be replaced?
Filter replacement frequency depends on usage, but a common schedule is every 6 to 12 months. Monitoring pressure drop across the filter can help determine the optimal timing.
